태양광소재

홈>사업소개>태양광소재

Backsheet

한화첨단소재 Backsheet는
완벽한 전기 절연성과 우수한 내구성으로 태양광 모듈의 효율을 최고로 유지합니다.

제품정보

  • 다양한
    필름 가공
    기술 보유
  • 소재 차별화 장기신뢰성
    소재 적용
  • 다양한 제품 Line Up 고기능성
    제품군 보유
  • 태양전지 모듈 배면에 부착되어 다양한 외부 환경(수분, 충격, UV)으로 부터 Cell 및 모듈을 보호하는 시트입니다.
  • 장기 내구성을 위해 불소계 필름 및 내후성 PET, 내후성 폴리올레핀 필름을 사용하여 Coating/Lamination 및 공압출 등 필름가공 기술이 적용된 제품입니다.

어플리케이션

제품종류

HBS-P Series (PET Type)
Feature
  • Excellent Solar Reflectance achieved through bright white film
  • Outstanding Stability shown in DHT, HAST
  • Superb bond strength to EVA sheet
Type
  • 1,000V (White/Black/Transparent)
  • 1,500V (White/Black/Transparent)
Structure

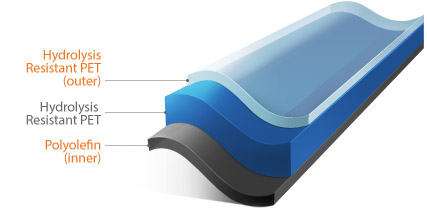

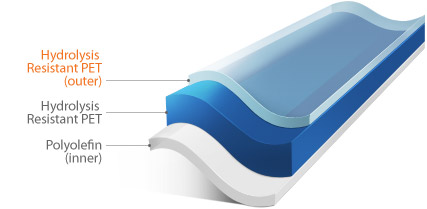

  • Hydrolysis Resistant PET (outer) / Hydrolysis Resistant PET / Polyolefin (inner)

    <White>

  • Hydrolysis Resistant PET (outer) / Hydrolysis Resistant PET / Polyolefin (inner)

    <Black>

  • Hydrolysis Resistant PET (outer) / Hydrolysis Resistant PET

    <Transparent>

Hydrolysis Resistance PET   The special-processed Hydrolysis Resistance PET has better weatherability compared to the general PET and protects the module from extreme weather conditions

Strengths
  • Good reflectivity
  • Durability for UV & damp heat

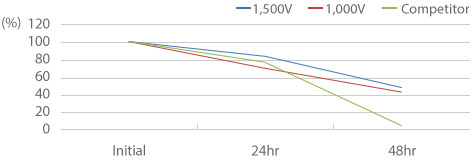

  • Retention ratio(%) of
    Tensile Strength after DH

  • Retention ratio(%) of
    Elongation at break after DH

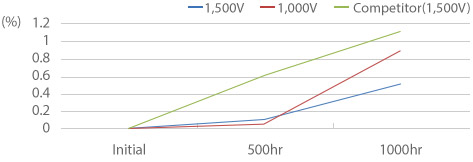

  • Reflectance (%)


HBS-S Series (Fluorinated Type)
Feature
  • Excellent UV resistance and weatherability
  • Consistent electrical insulation under high voltage
  • Superb bond strength to EVA sheet
Type
  • 1,000V (White/Black/Transparent)
  • 1,500V (White/Black/Transparent)
Structure

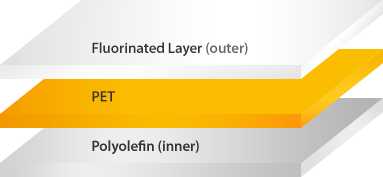

Fluorinated Layer (outer) / PET / Polyolefin (inner)
Strengths
  • Superior reliability against UV stress
  • Good reliability against severe climate

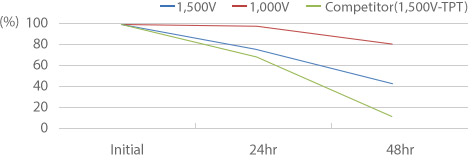

  • Retention ratio(%) of Tensile Strength after DH

  • Retention ratio(%) of Elongation at break after DH

HBS-D Series
Feature
  • Excellent solar reflectance achieved through double-sided fluorinated coating
Type
  • 1,000V (White/Black/Transparent)
  • 1,500V (White/Black/Transparent)
Structure

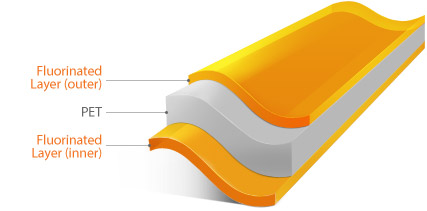

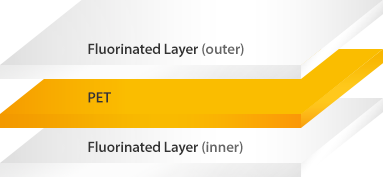

Fluorinated Layer (outer) / PET / Fluorinated Layer (ineer)
HBS-X Series
Feature
  • Non-aluminum low WVTR (<1.5g/㎡·day) Backsheet
Type
  • 1,000V (White/Black/Transparent)
Structure

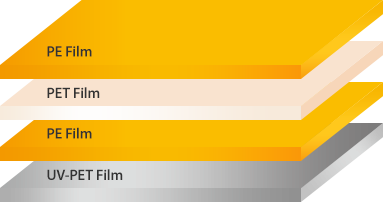

PE Film / PET Film / PE Film / UV-PET Film
Grid Type Backsheets
Feature
  • Black / White grid coating can be applied based on customer’s cell shape and size
  • Good UV resistance and Weatherability
Type
  • 1,000V, 1500V (HBS- P, S, D, X Series)
Structure

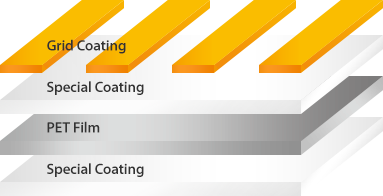

Grid Coating / Special Coating / PET Film / Special Coating

기술정보

생산프로세스

Backsheet 제조
Backsheet 제조 과정
