Solar Materials

Backsheet

Hanwha Advanced Materials’ Backsheet maintains the highest efficiency of solar modules with perfect electrical insulation and excellent durability.

Product Info.

  • Various Film Processing Technology
  • Differentiation of MaterialApplication of Materials with Long-term Reliability
  • Various Products Line UpHigh-functional Product Family

It is attached to the back of a solar cell module to prevent penetration of water, shock and UV rays, and protects the cell and module.

For long-term durability, film processing technology such as coating/lamination and coextrusion is applied by using fluoric film, weather-resistant PET, and weather-resistant polyolefin film.

Application

Backsheet 어플리케이션

Type

HBS-P Series (PET Type)
Feature
  • Excellent Solar Reflectance achieved through bright white film
  • Outstanding Stability shown in DHT, HAST
  • Superb bond strength to EVA sheet
Type
  • 1,000V (White/Black/Transparent)
  • 1,500V (White/Black/Transparent)
Structure

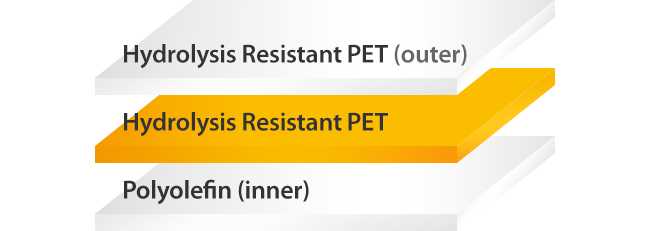

  • Hydrolysis Resistant PET (outer) / Hydrolysis Resistant PET / Polyolefin (inner)

    <White>

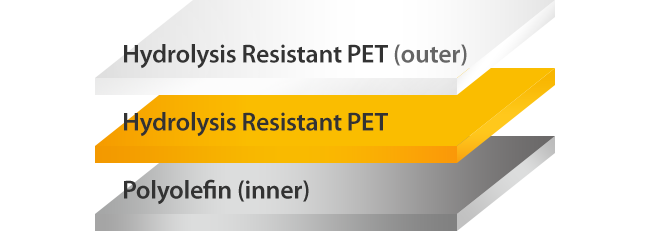

  • Hydrolysis Resistant PET (outer) / Hydrolysis Resistant PET / Polyolefin (inner)

    <Black>

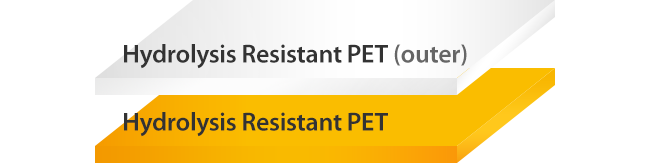

  • Hydrolysis Resistant PET (outer) / Hydrolysis Resistant PET

    <Transparent>

Hydrolysis Resistance PET   The special-processed Hydrolysis Resistance PET has better weatherability compared to the general PET and protects the module from extreme weather conditions

Strengths
  • Good reflectivity
  • Durability for UV & damp heat

  • Retention ratio(%) of Tensile Strength after DH

  • Retention ratio(%) of Elongation at break after DH

  • Reflectance (%)

HBS-S Series (Fluorinated Type)
Feature
  • Excellent UV resistance and weatherability
  • Consistent electrical insulation under high voltage
  • Superb bond strength to EVA sheet
Type
  • 1,000V (White/Black/Transparent)
  • 1,500V (White/Black/Transparent)
Structure
Fluorinated Layer (outer) / PET / Polyolefin (inner)
Strengths
  • Superior reliability against UV stress
  • Good reliability against severe climate

  • Retention ratio(%) of Tensile Strength after DH

  • Retention ratio(%) of Elongation at break after DH

HBS-D Series
Feature
  • Excellent solar reflectance achieved through double-sided fluorinated coating
Type
  • 1,000V (White/Black/Transparent)
  • 1,500V (White/Black/Transparent)
Structure

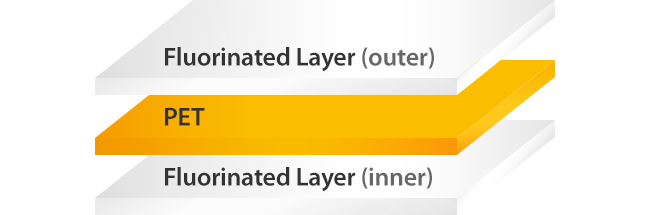

Fluorinated Layer (outer) / PET / Fluorinated Layer (ineer)
HBS-X Series
Feature
  • Non-aluminum low WVTR (<1.5g/㎡·day) Backsheet
Type
  • 1,000V (White/Black/Transparent)
Structure
PE Film / PET Film / PE Film / UV-PET Film
Grid Type Backsheets
Feature
  • Black / White grid coating can be applied based on customer’s cell shape and size
  • Good UV resistance and Weatherability
Type
  • 1,000V, 1500V (HBS- P, S, D, X Series)
Structure
Grid Coating / Special Coating / PET Film / Special Coating

Technical Data

  • Fluorinated Type Backsheet다운로드
  • PET Type Backsheet다운로드

Production Process

Material Process
Material Process
