Solar Materials

Encapsulant

Encapsulant of Hanwha Advanced Materials has excellent quality with Calender and T-Die method.

Product Info.

  • Facility to Supply Products according to Customer Needs Calendering & T-Die
  • World-class Productivity
  • Various Products Line UpHigh-functional Product Family

It is a sheet which is used for adhesion of Glass/Cell/Backsheet of solar cell modules and for cell protection (encapsulant), and which requires long-term durability (more than 25 years) and optical characteristics. Hanwha Advanced Materials supply high quality raw materials based on Hanwha Group's global competitiveness in the EVA raw material market for solar cells. Our EVA sheets have been recognized for its superior quality all over the world by applying the highly-regarded calendar process and T-die method.

Application

Encapsulant 어플리케이션

Type

HEP Series
HEP +T Series Fast Cure
Properties Unit Data Test Method & Remarks
Degree of Cross-linking % ≥80 Lamination(@150°C, 15min)
Adhesion to Glass N/cm ≥100 Hanwha Method
Shrink Rate % ≤3 120°C, 5min
Ultra Fast Cure

Increases module productivity by reducing lamination time

Performance
  • Reduces Lamination time

Total time :

Temp. Vacuum Press
150 4~5 7~8
160 5~6
165 4~5

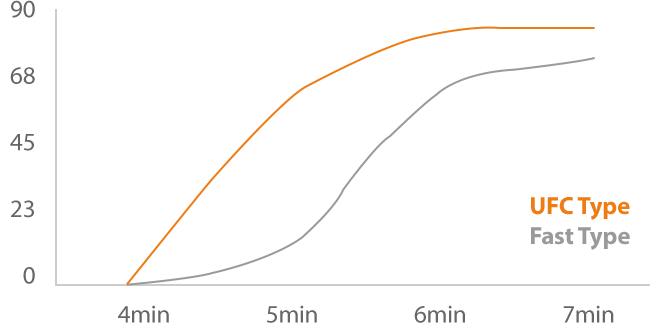

  • Speed of Cross-linking at 150°C Lamination

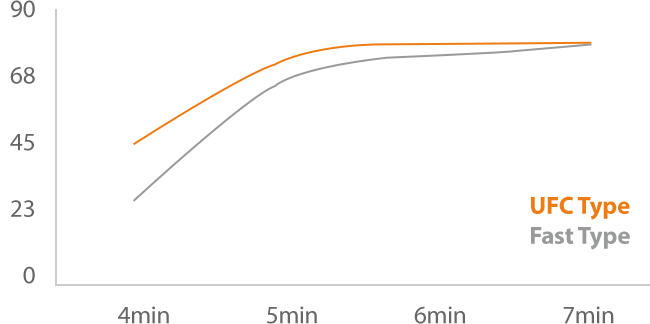

  • Speed of Cross-linking at 160°C Lamination

UV Through

Increased solar module efficiency achieved through optimal UV range transmittance

Performance
  • Increase of 2~3 Wp (with Multi Cell)
  • Increase of 3~5 Wp (with Mono Cell)

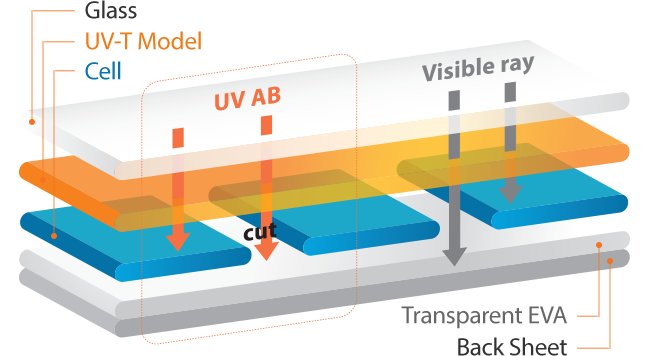

UV-T Module Use of UV AB range

  • Increase in module efficiency
  • Secure light resistance from UV range
  • UV Range Transmittance

HEP Series (Anti-Hydrolysis)
HEP +T Series  Anti-Hydrolysis
  • Minimizes hydrolysis of polymer chains in EVA, maintaining the output of TOPCon cell modules under high temperature/humidity environment.
  • DH 2000hr (M10 TopCon cell / G2F type)
Initial 1000hr 2000hr △Pmax
TopCon EVA - 0.7%
HAMC POE - 0.7%
Competitor-1 EPE - 0.8%
Competitor-1 POE - 0.7%
Competitor-2 EPE - 0.1%
Competitor-2 POE - 1.1%
HPO Series

POE Sheets produced by Hanwha Advanced Materials provide excellent moisture resistance, great
Anti-PID ability and offer superior protection against metallic corrosion in Bus/finger bar caused by Acetic acid.

HPO +T Series
Feature
  • High Transmittance, reliability and Adhesion Power.
  • Lower water transmittance compared to EVA Sheet.
  • Prevents cell damage from current leakage in modules.
WVTR
WVTR
EVA ≤ 30
POE ≤ 10

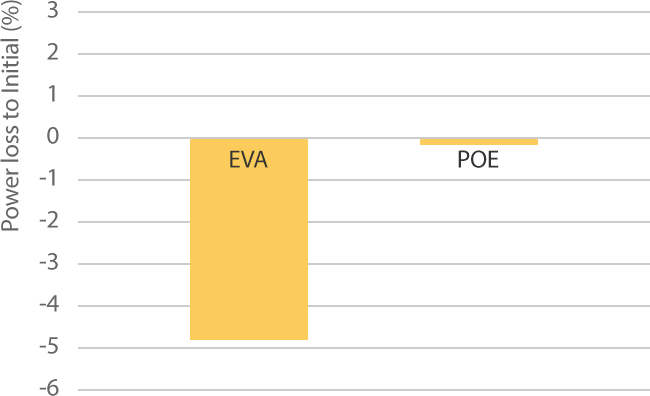

Structure PID Test

PID 85℃, 85%RH, 1000V (P-type mono-facial / G2F type)

Technical Data

  • Physical Properties of EVA Sheet다운로드

Production Process

Material Process
Material Process
